EXTENDX
|
<< Click to Display Table of Contents >> EXTENDX |
|
Range Expressions
= < <= > >= <> |
equal less than equal or less than greater than equal or Greater Than not equal |
Dates
Select transactions for the past 60 days.
Trandate >=curdate() - 60
Current date is represented as curdate()
Date format is 'YYYY-MM-DD' i.e, trandate between '2012-08-01' and '2012-08-31'
ExtendX Data Analysis

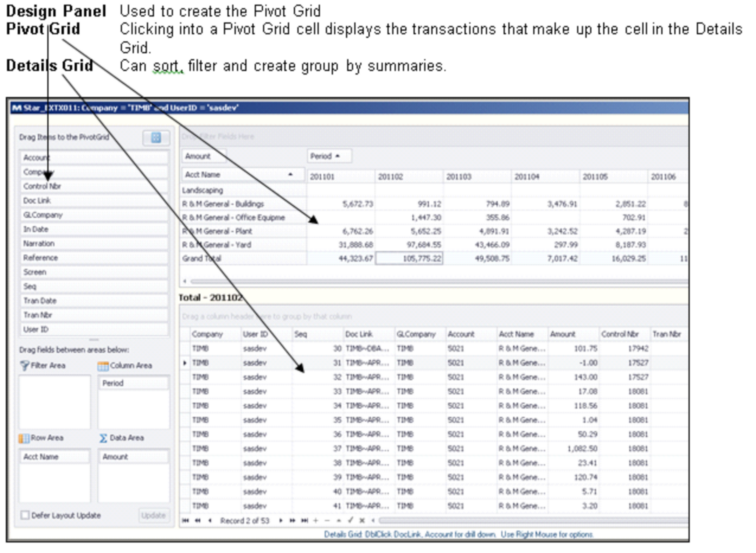

The ExtendX screen comprises three main parts.

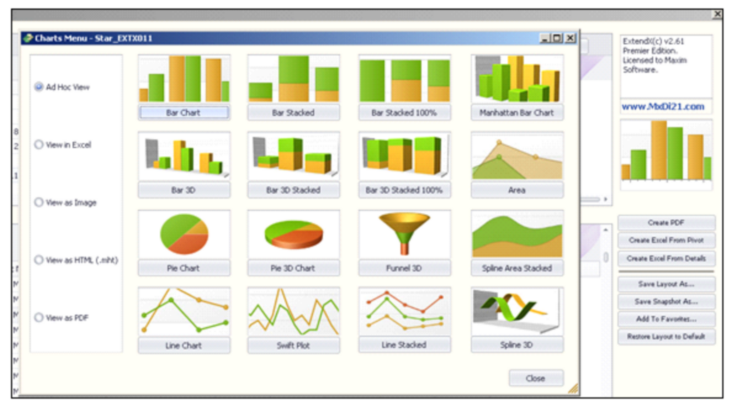

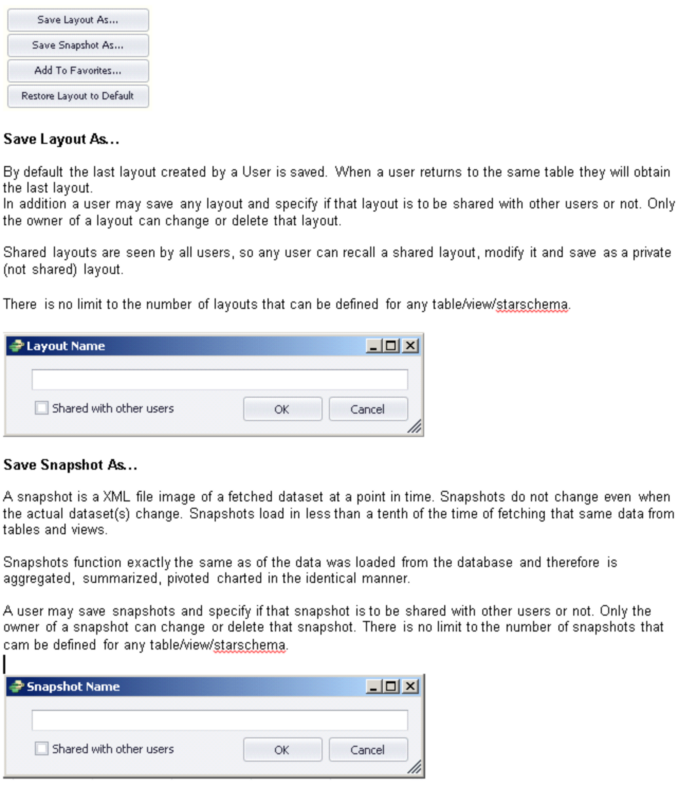

On the right hand side of the screen is the panel to create and save graphs, create spreadsheets and pdfs.

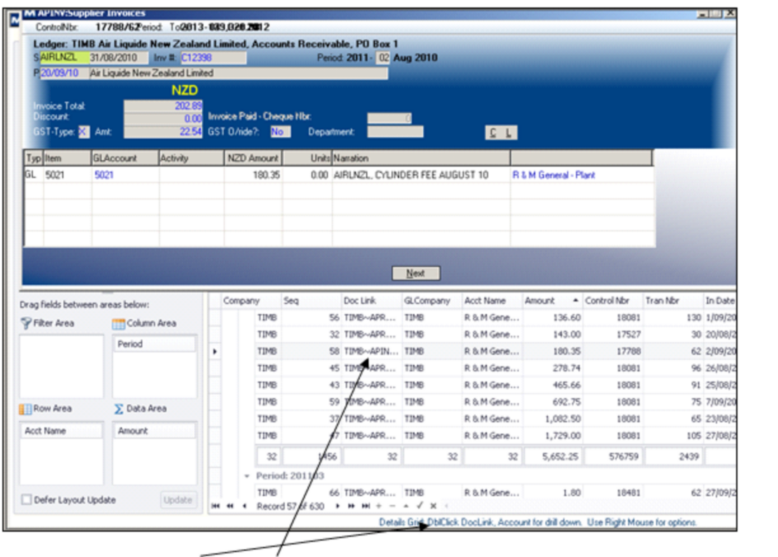

From the ExtendX view you can drill down to the linked Maxim screen.
Based on what is said here, DbleClick on the required line in the correct column to activate the drill down.

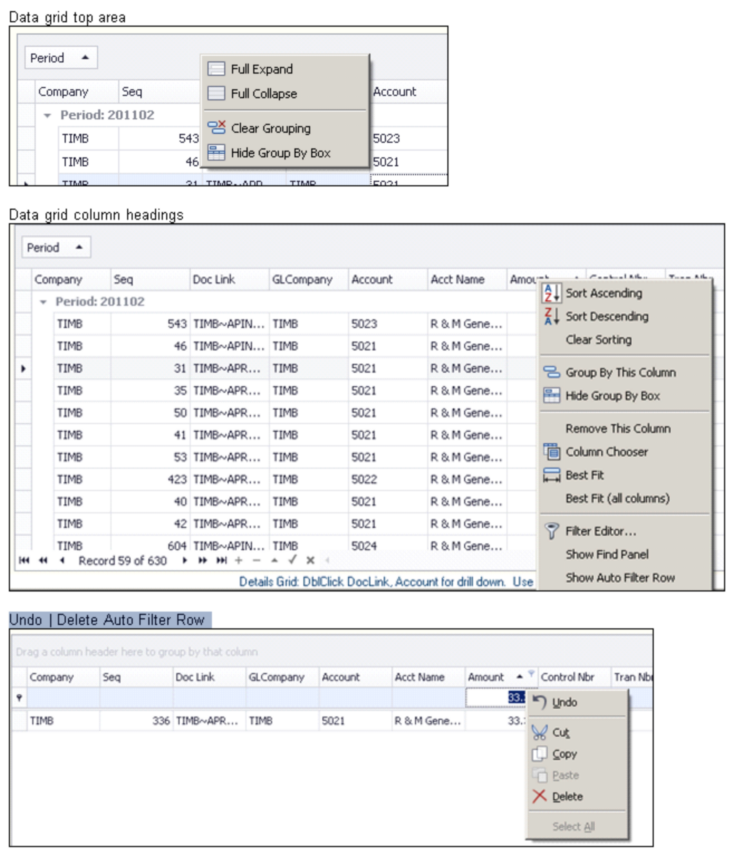

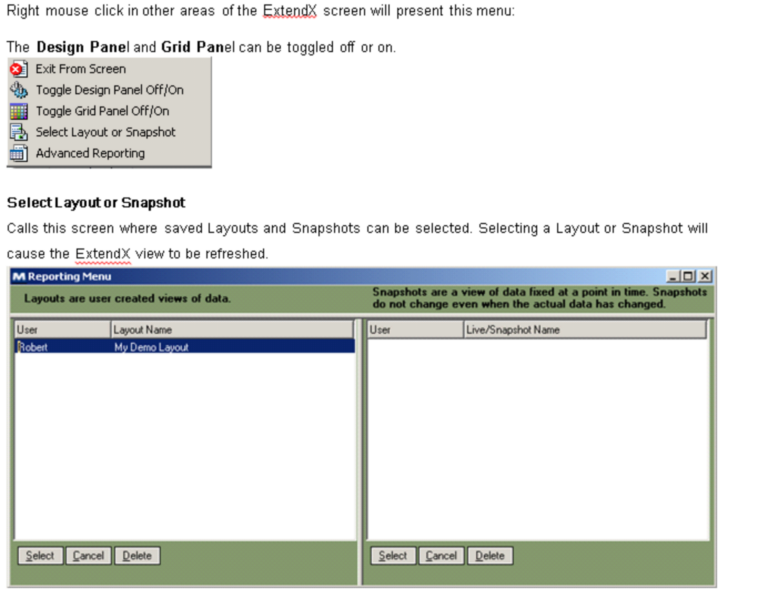

Right mouse click in different areas will activate different ExtendX options

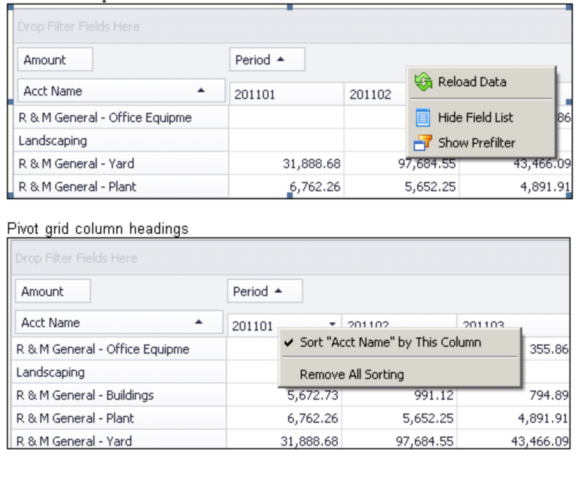

Pivot Grid top area

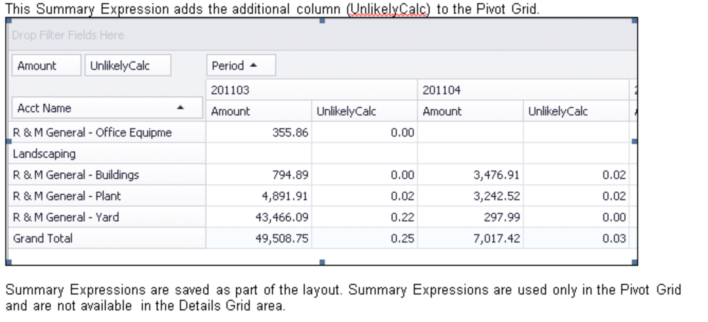

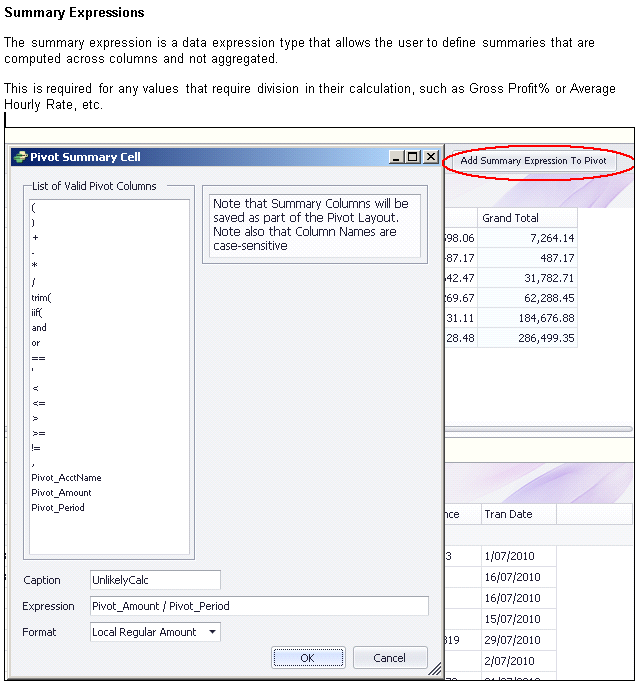

The columns on which the Summary Expressions is based must be moved to the Data Area in order to be available to define the calculation. These columns may then be removed from the Data Area if desired.
